Eclipse 3W5-W Wall Mounted 25L Water Boiler Calomax

Eclipse 3W5-W Wall Mounted 25L Water Boiler Calomax

Eclipse 3W5-W Wall Mounted 25L Water Boiler Calomax

£678.21
(Exc. 20% VAT)
£799.00
Saving Of
£120.79 (15%)
(£813.85 Inc. VAT)
Water Dispenser Installation Kit (AC1K14)
In stock, immediate despatch
–
+
Also available for this product
Professional Water Cooler / Boiler Installation
Water Cooler Installation Kit AC1K59

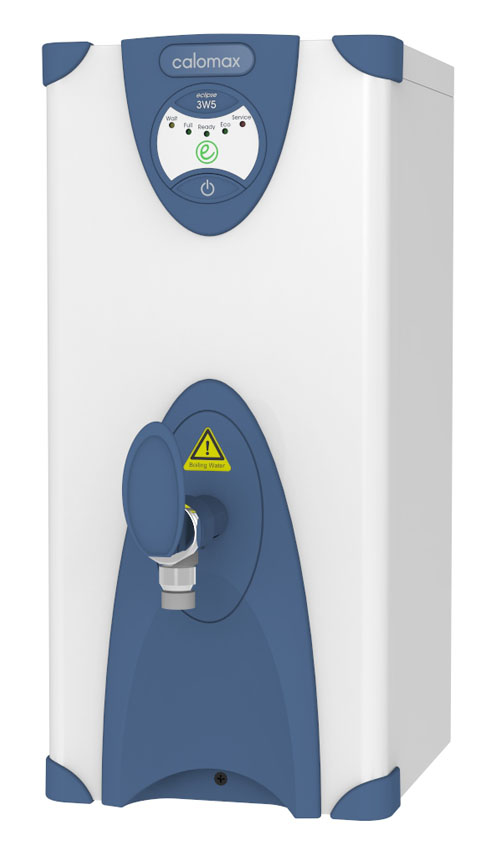

The Eclipse 3W5-W is a white wall-mounted boiler. It has a 5L draw off, and will deliver 25 L/hr. Calomax recommend it as suitable for 12-20 people. This boiler is designed and built in the UK, and has an eco button to reduce the amount of water being boiled by 50% when off-peak.
Key Features

Key Features

  • UK designed and made
  • Easy install and service - removable front panel.
  • Energy-saving "eco" button which reduces the volume of boiling water by 50% "off peak".
  • SteriTouch Antimicrobial protection in the tap handle.
  • Clear and unambiguous self-diagnostic display panel.
  • Integral scale-inhibitor technology.
  • Extended 2-year warranty.
  • Discrete on/off switch incorporated into moulding.
  • Cool-to-touch outer casing.
Downloads

Downloads

Schematics

Manuals

Specification

Specification

Brand
Calomax
Configuration
Wall Mounted
Product Type
Boiler
Cold Water
No
Hot Water Temp
Yes
Hot Water (cups of Hot Water each hour)
25
Hot Water - Draw Off (L)
5
WRAS Approved
Yes
Country of Manufacture
UK
Dimensions (mm) (HxWxD)
510 x 240 x 270
Installation Kit Included
No

The Calomax Eclipse wall-mounted hot water boiler range comes with a 5L rapid draw off.

These boilers are designed and built in the UK, and this model comes with a stainless steel casing.

KEY FEATURES

UK designed and made
5L rapid draw off
25 Litres produced per hour
3KW element
Temperature controlled between 96°C and 97°C
Easy install and service - removable front panel.
Integral scale-inhibitor technology.
2-year warranty.
Clear and unambiguous self-diagnostic display panel.
Energy-saving "eco" button which reduces the volume of boiling water by 50% at "off peak" times of demand.
Antimicrobial protection in the tap handle.
No steam emissions
Discrete on/off switch incorporated into moulding.
Cool-to-touch outer casing.
WRAS approved
Push-fit and compression adapter included to simplify installation
Product Brochure
WRAS Certificate
